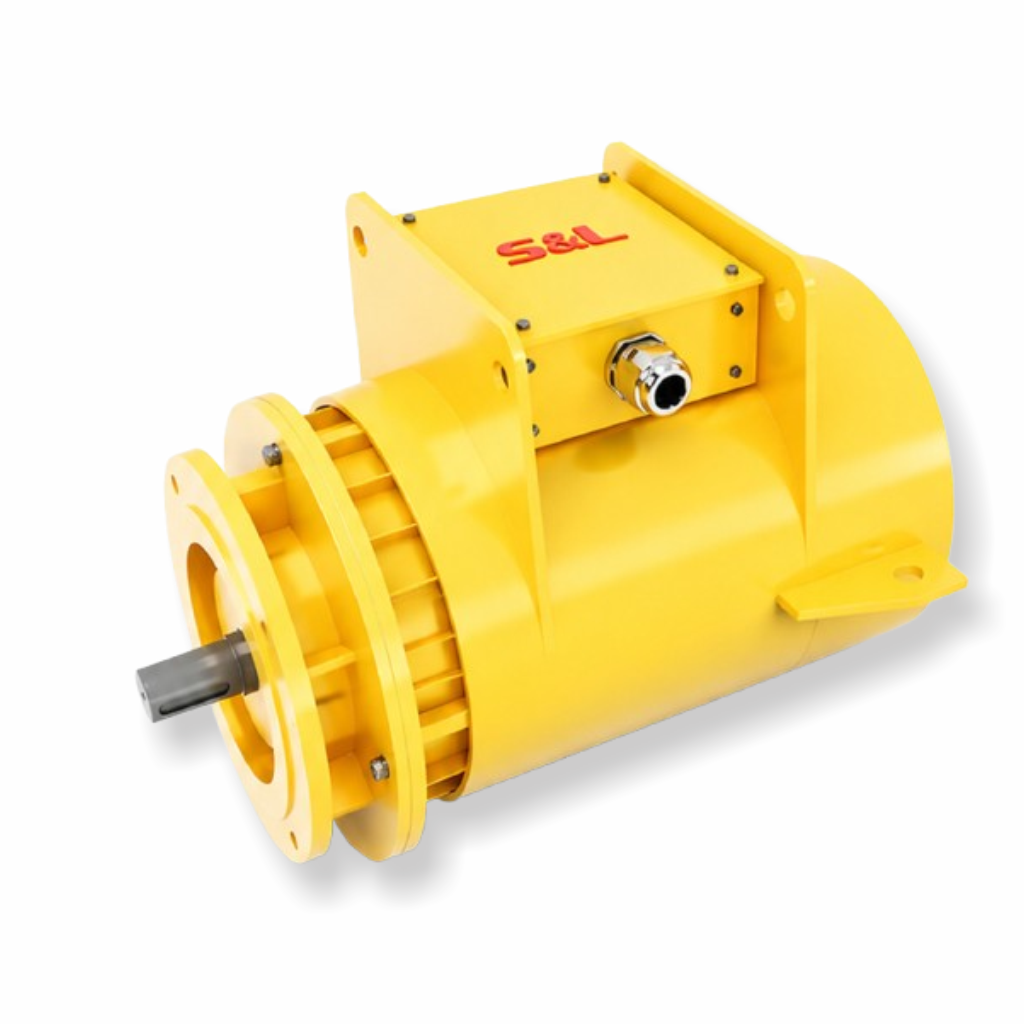

SLSF IE3 STEEL FRAME PREMIUM EFFICIENCY MOTOR
The S&L Africa SLSF IE3 is a high-performance, fabricated steel-frame electric motor engineered to deliver maximum durability and mechanical strength in the most demanding mining and industrial environments. This three-phase, totally enclosed fan-cooled (TEFC) motor features an IE3 premium efficiency design that complies with MEPS VC9133, IEC 60034-1, and SANS testing standards to significantly reduce operating costs and electricity consumption. Built for extreme conditions, it incorporates a Class F insulation system restricted to a cooler Class B temperature rise, premium SKF brand bearings, and IP55 dust and water-resistant protection. Finished in a prominent premium mining yellow with a corrosion-resistant 2-pack epoxy paint finish, the SLSF IE3 offers a 20-year winding design life and a 5-year warranty, making it the ideal choice for direct-drive setups across high-vibration equipment such as pumps, fans, conveyors, and crushers.
IE3 PREMIUM EFFICIENCY
Lower energy consumption and reduced operating costs
F CLASS INSULATION (180°C)
Superior insulation system for longer life in harsh conditions
B CLASS TEMPERATURE RISE
Cooler operation for maximum performance
IP55 INGRESS PROTECTION
Protection against dust, water jets and tough environments
1.0 SERVICE FACTOR
Built for stead performance in demanding applications
ALTITUDE 1000masl
Designed to perform at high altitude
AMBIENT -15 ~ 40°C
Reliable operation in extreme conditions
VACUUM PRESSURE IMPREGNATION
Superior insulation and moisture resistance
LAMINATION STEEL
Fully processed silicon steel used on all motors (400°C)
20 YEAR WINDING LIFE DESIGN
Engineered for long term reliability
TECHNICAL SPECIFICATIONS
Output Range
Refer to catalogue
Voltage
Refer to catalogue
Frequency
50Hz
Duty
S1 Continuous Duty
Service Factor
1.0
Insulation Class
F (155°C)
Temperature Rise
Class B
Protection
IP55
Altitude
1000 m.a.s.l.
Ambient
-15 ~ +40°C
Cooling
IC411 (TEFC)
Mounting
B5
Direction of Rotation
CW or CCW
Terminal Box Position
Top
Certification
MEPS VC9133, IEC 60034-1 & SANS
